The SWL profile utilizes a minimalistic snap-lock seam design for panel strength and simple installation. It is ideal for installing over a weatherproof barrier as an architectural panel to shed rainwater and achieve a sleek design intent. A minimum pitch of 2:12 is required.
Product Highlights
Onsite roll-forming of panels in continuous lengths is available to eliminate panel end laps
Snap-lock joinery for seamer-free, easy assembly
Suitable for roofs with 2:12 slope or greater
Optional batten available for a clean, finished look
Panels can be straight tapered
Available in aluminum and galvalume (check with Morin for other metal substrates)
Standard and custom finish options available

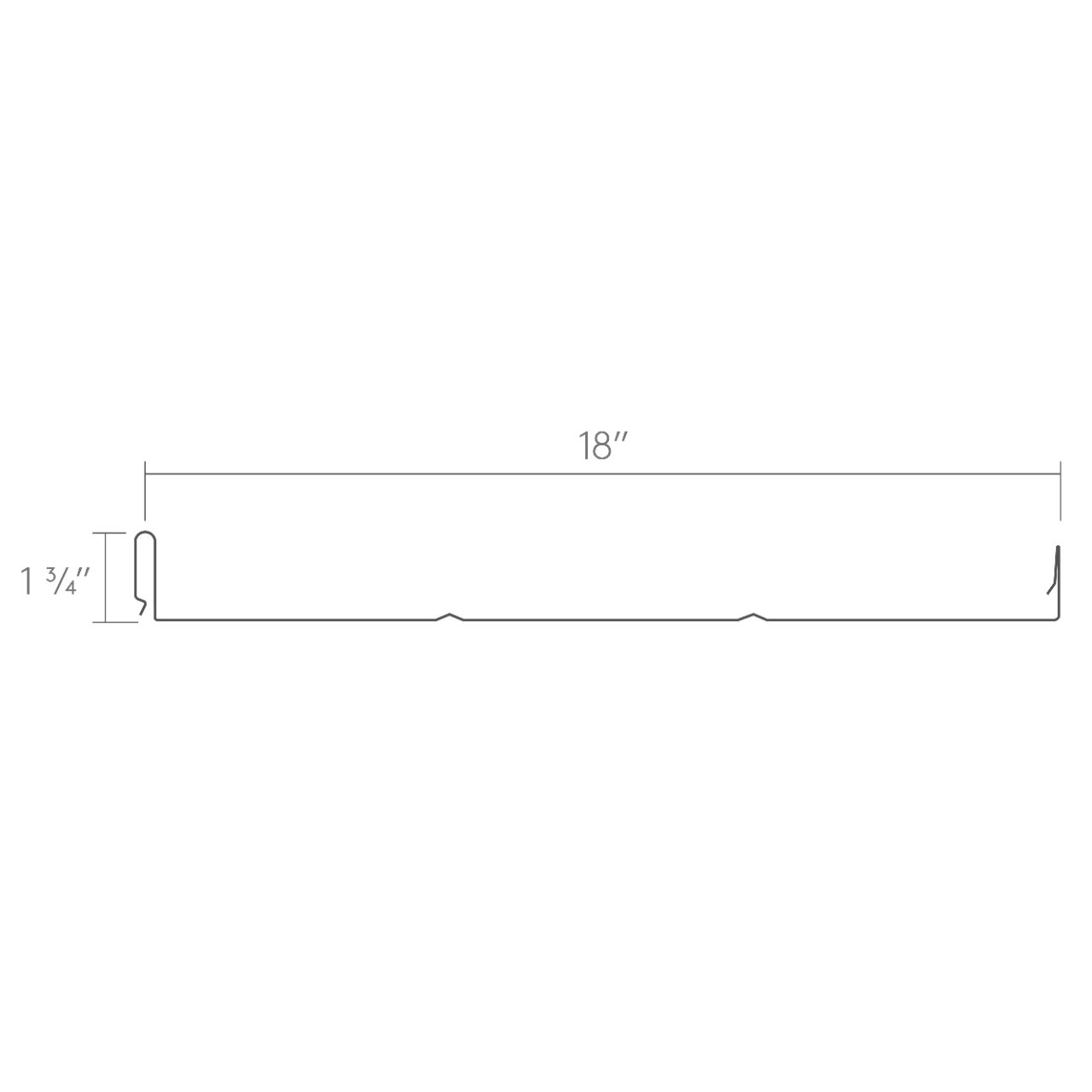

Snap-lock seam panel with 1 ¾" height for slopes greater than 2:12
FAQs [Roof Systems]
Yes. We offer installation training at any of our 3 facilities in Bristol CT, Fontana CA, and DeLand FL free of charge. We can also provide job specific/onsite installation training. We recommend one or both options for every project. Installation is a key factor in ensuring the finished product is the highest quality possible. Please contact your Morin representative for more information.
Spans are calculated depending on product profile, material, gauge, and perforation. Span charts may be downloaded from the Downloads tab within each product. If you do not see the span chart you are looking for, please contact Morin and we will calculate the necessary span for you.
We offer a range of standard colors as well as custom color options for all our products. There is the option to have paint finish on one side only, or both sides. View our color chart or select a custom color for us to match. We offer multiple paint systems – contact your Morin representative to find out which system is right for your project.
Yes. We can provide curved panels for any type of project. Each profile has different limitations. Contact Morin with your specific requirements to find out what's possible.
Use this form to access and download Morin revit objects directly in Autodesk B360 for any of our panels.
Yes. We offer onsite/jobsite roll-forming with the use of a portable roll-forming machine.
We can produce panels as long as a truck bed/trailer (48-53 ft) if required. We also offer onsite roll-forming where we can produce roof panels at the jobsite as long as 200-300 feet or more. Contact Morin if you require this service.
At Morin, our focus is on providing inventive and top quality products. Although we do not offer installation as one of our services, we can provide support through the installation phase by offering onsite installer training, job inspections, installation guides, technical details, and more. We work with hundreds of qualified installers across the country. Contact your local Morin representative today to learn more.
We offer standard material and finish warranties with all of our standard orders. We can also provide most warranties specified for a project. Just let us know the requirements and we will work with you. Contact Morin for sample warranties.
